Smart Thermostat Meross MTS215 (Matter)

Smart Thermostat Meross MTS215 (Matter) | For Electric and Water Underfloor Heating

Your home should greet you with a warm, comfortable atmosphere — not a huge electricity bill. The new Meross MTS215 smart thermostat with Matter support makes it easier to control your heating and keep your home comfortable. It's not just a stylish replacement for an old mechanical thermostat. It's the central control point for your heating, bringing different heating systems into one smart setup without tying you to a single smartphone brand.

Key Features

• Dual temperature control: The built-in sensor measures the room temperature, while an external NTC 10K sensor can monitor the floor temperature. This is especially useful for preventing laminate, tiles, and other flooring from getting too hot.

• Open Window Detection: If the temperature suddenly drops while you're airing out the room, the thermostat automatically stops heating for 30 minutes, so you don't waste energy heating the outdoors.

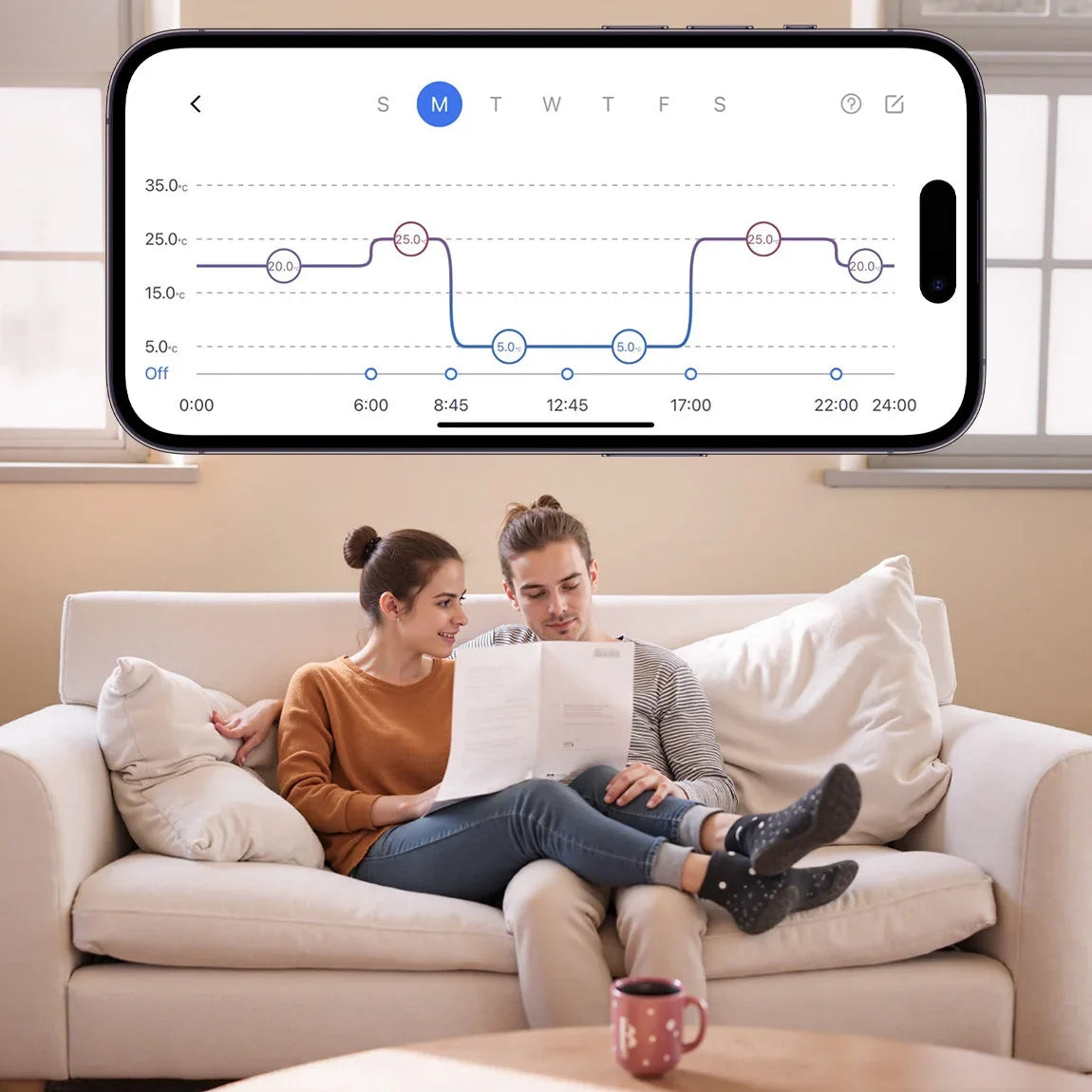

• Smart 24/7 schedule: Set different temperatures for the morning, daytime, evening, and night for each day of the week.

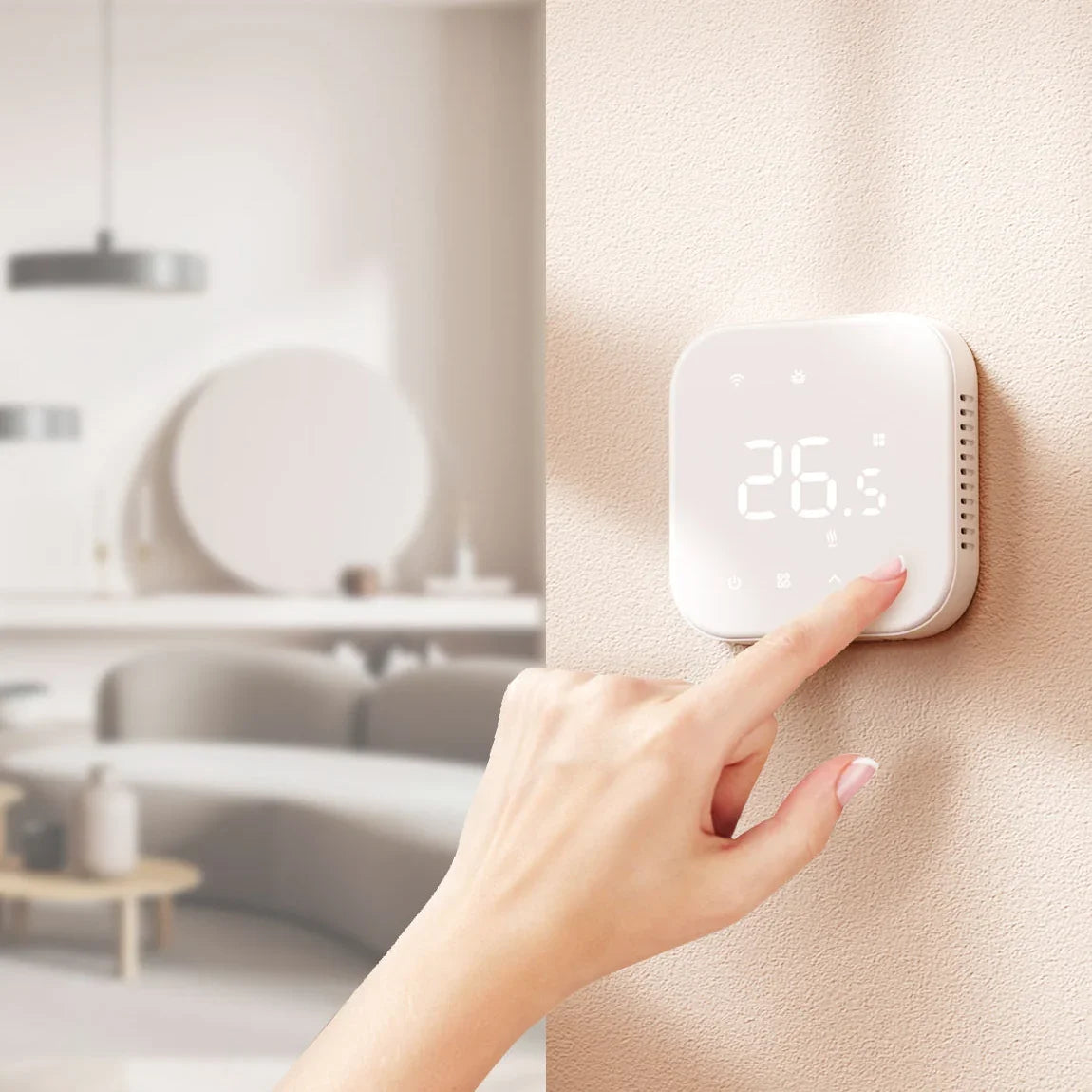

• Touchscreen LED display with adjustable backlight: The sleek glass panel shows the current temperature at a glance. You can adjust the brightness or turn the display off completely at night, so it won't keep you awake.

• Voice control: Works with Siri, Google Assistant, and Amazon Alexa. Just say, "Make it 2 degrees warmer."

• Antifreeze protection: Automatically keeps the temperature above a safe minimum during the winter. This is especially useful for water-based heating systems.

• Child lock: Lock the touchscreen to stop children or pets from accidentally changing the settings.

What Problems Does the Meross MTS215 Solve?

• A cold floor in the morning: Set a schedule and the thermostat will warm up the floor before you wake up or get home from work. When you're away, it automatically switches to an energy-saving mode.

• Different phones, different ecosystems: If your family uses both iPhones and Android phones, everyone can control the heating from their preferred smart home app. No more compatibility headaches.

• No need to rely on the internet: Basic schedules and temperature limits are stored on the thermostat itself. Thanks to Matter, your heating can continue working locally even if your home Wi-Fi goes down.

The Next Step in Smart Heating: Why Choose Matter?

With older thermostats, such as the Meross MTS200 series, you had to choose your smart home ecosystem from the start: the HomeKit version for Apple users or the standard version for Android, Google, and Alexa users. Switch from one phone platform to another, and some features could become unavailable.

With the Meross MTS215 (Matter), you don't have to worry about that:

• Works with multiple platforms: One Matter QR code lets you add the thermostat to Apple Home, Google Home, Amazon Alexa, SmartThings, or Home Assistant.

• Local control: Matter works over your home's local network, so commands are handled quickly without having to go through cloud servers.

One Series, Three Versions. Which One Do You Need?

All three models have the same premium look with a sleek glass panel. The main difference is the type of relay inside, depending on your heating system.

1. For Electric Underfloor Heating (up to 16A)

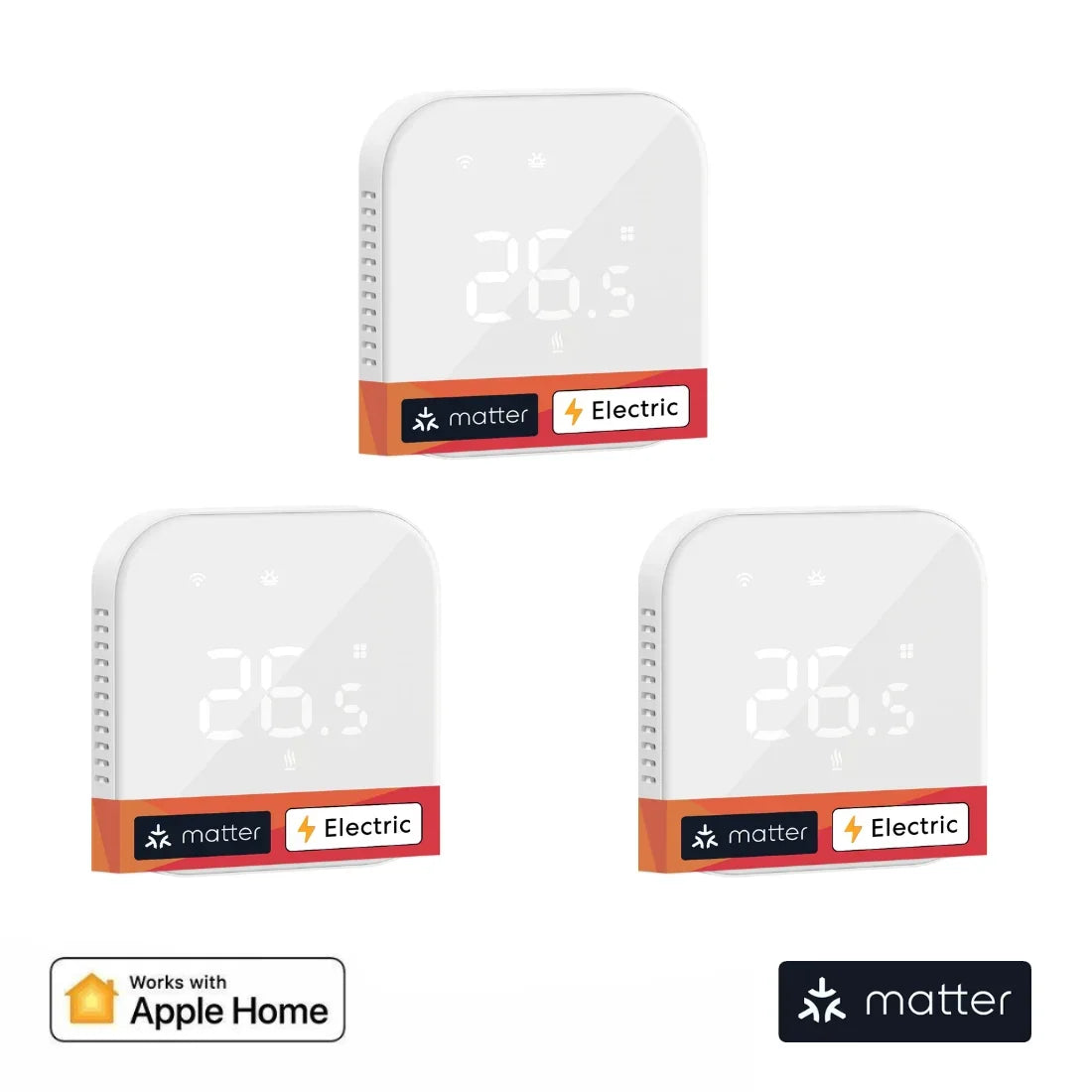

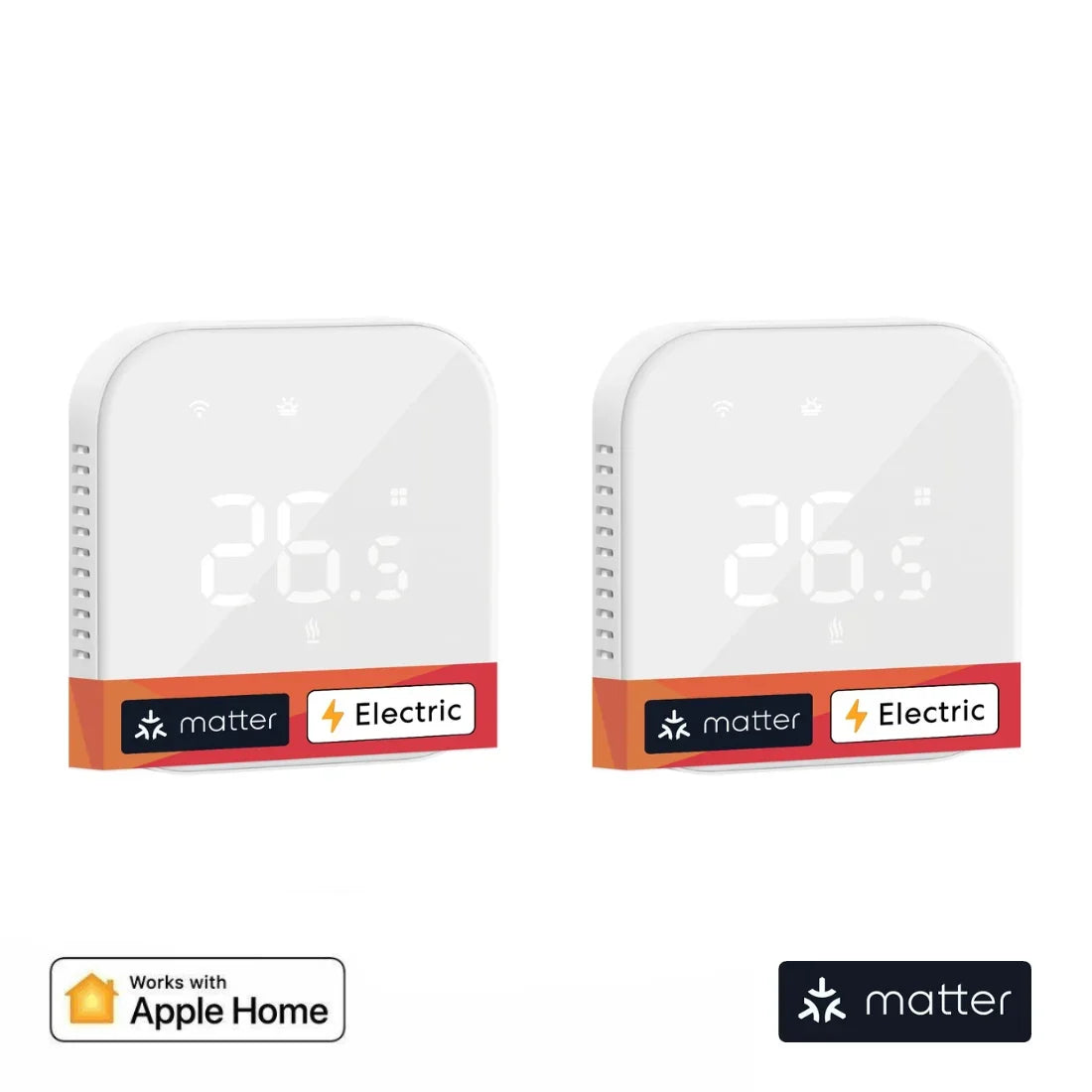

• Meross MTS215MA (White): A great fit for electric heating mats, infrared heating film, and heating cables. It can handle loads of up to 3600 W.

2. For Water Underfloor Heating and Boilers (up to 3A)

Designed to control thermoelectric actuators (Normally Closed / Normally Open) on a heating manifold. It also has dry-contact outputs for controlling a gas or electric boiler.

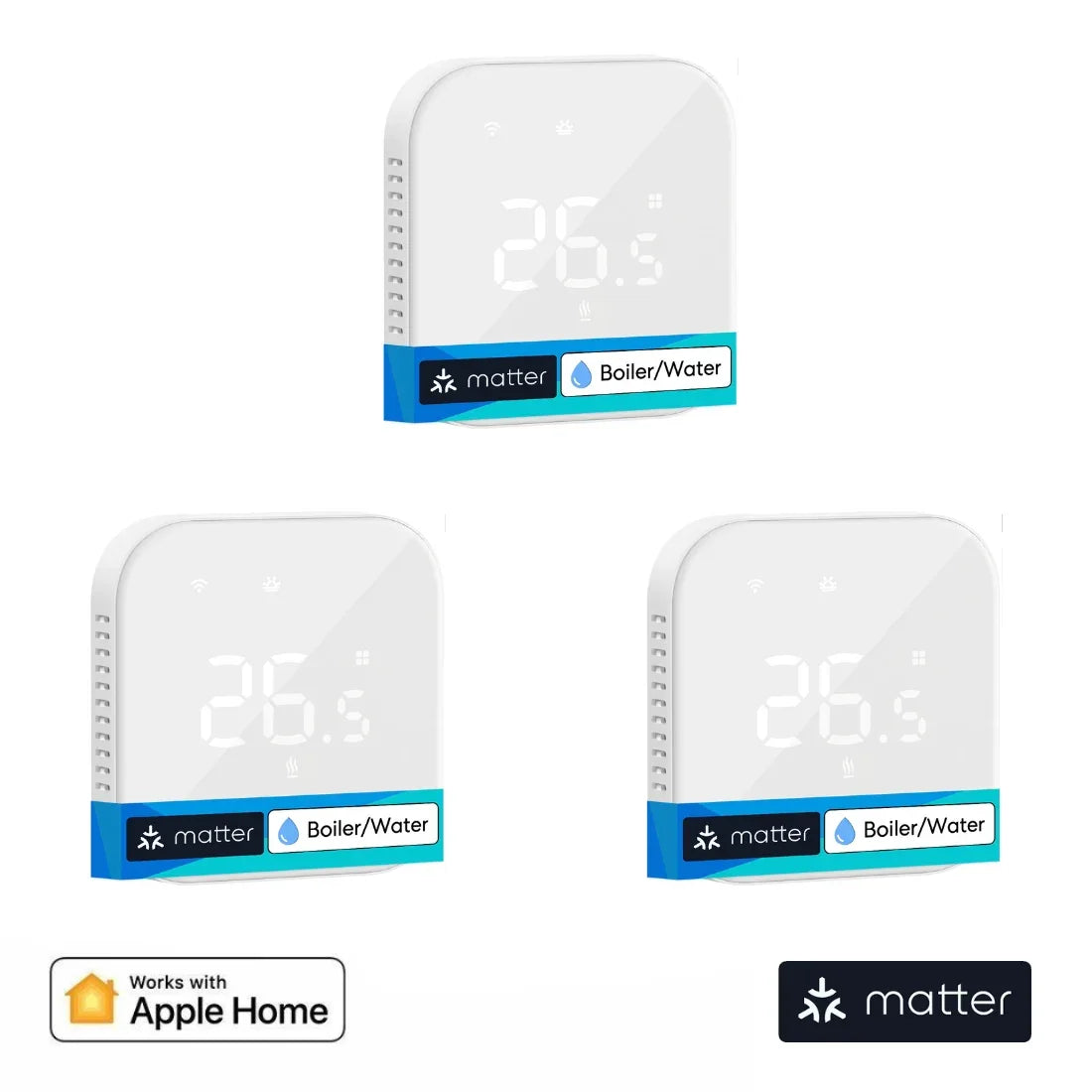

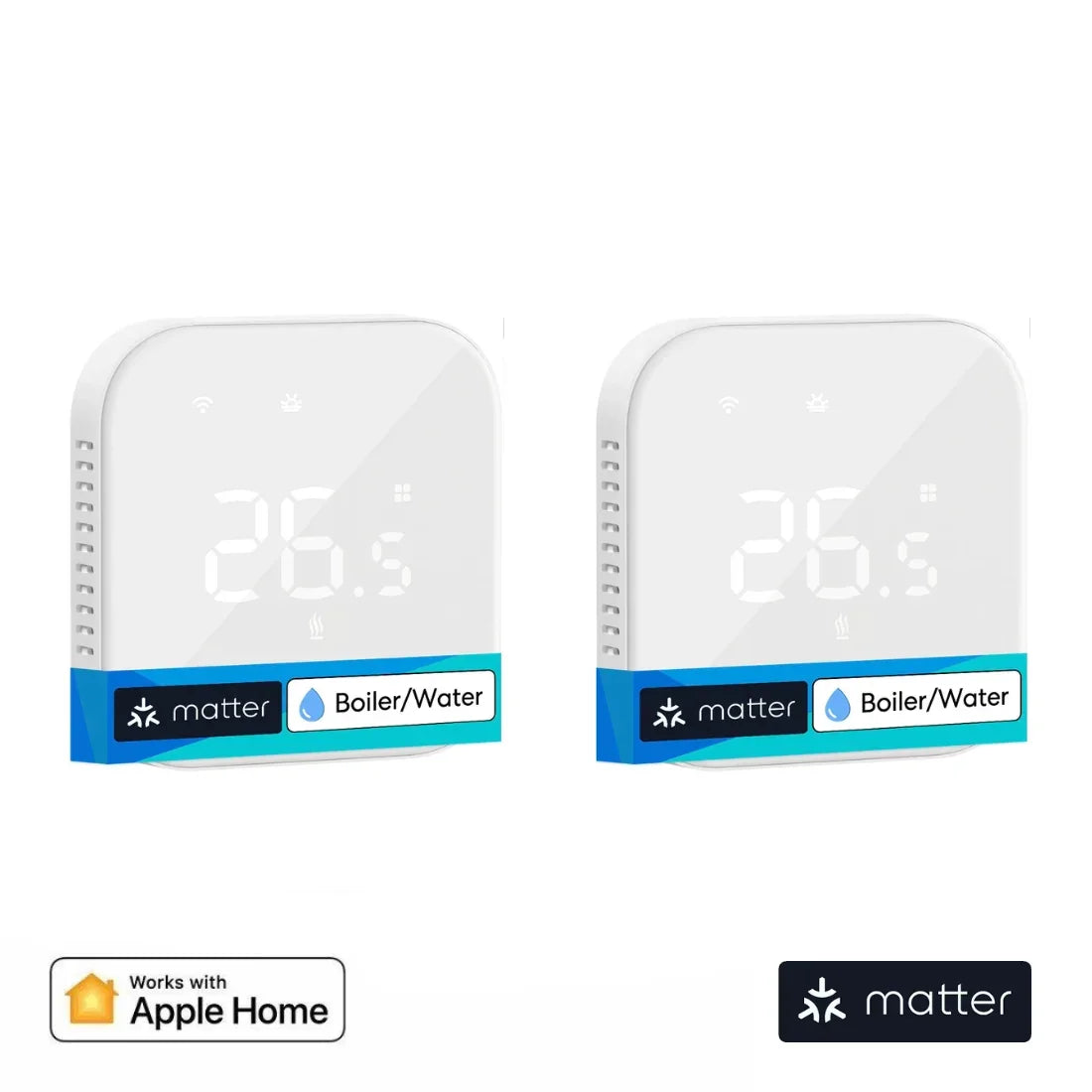

• Meross MTS215BMA (White): Classic white finish.

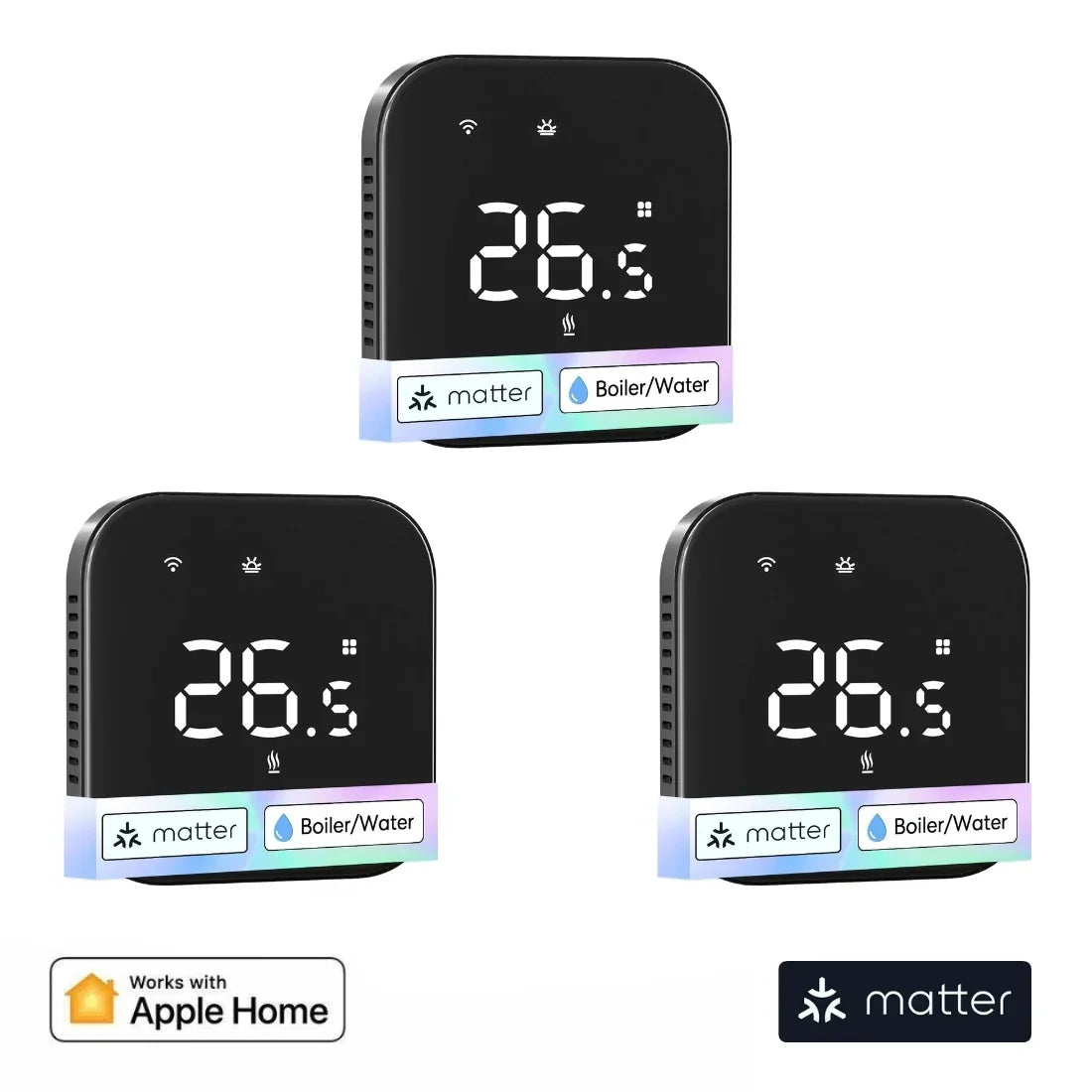

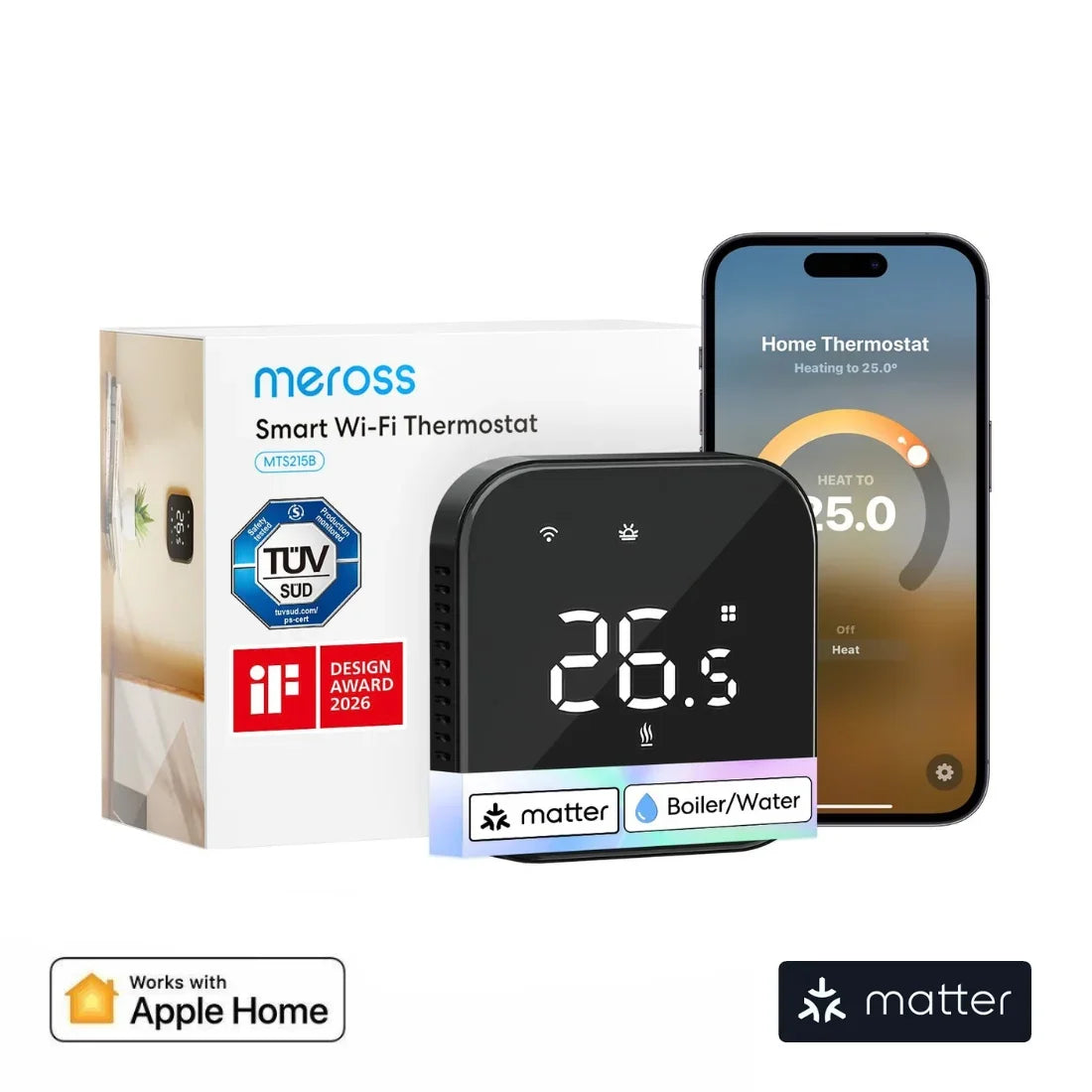

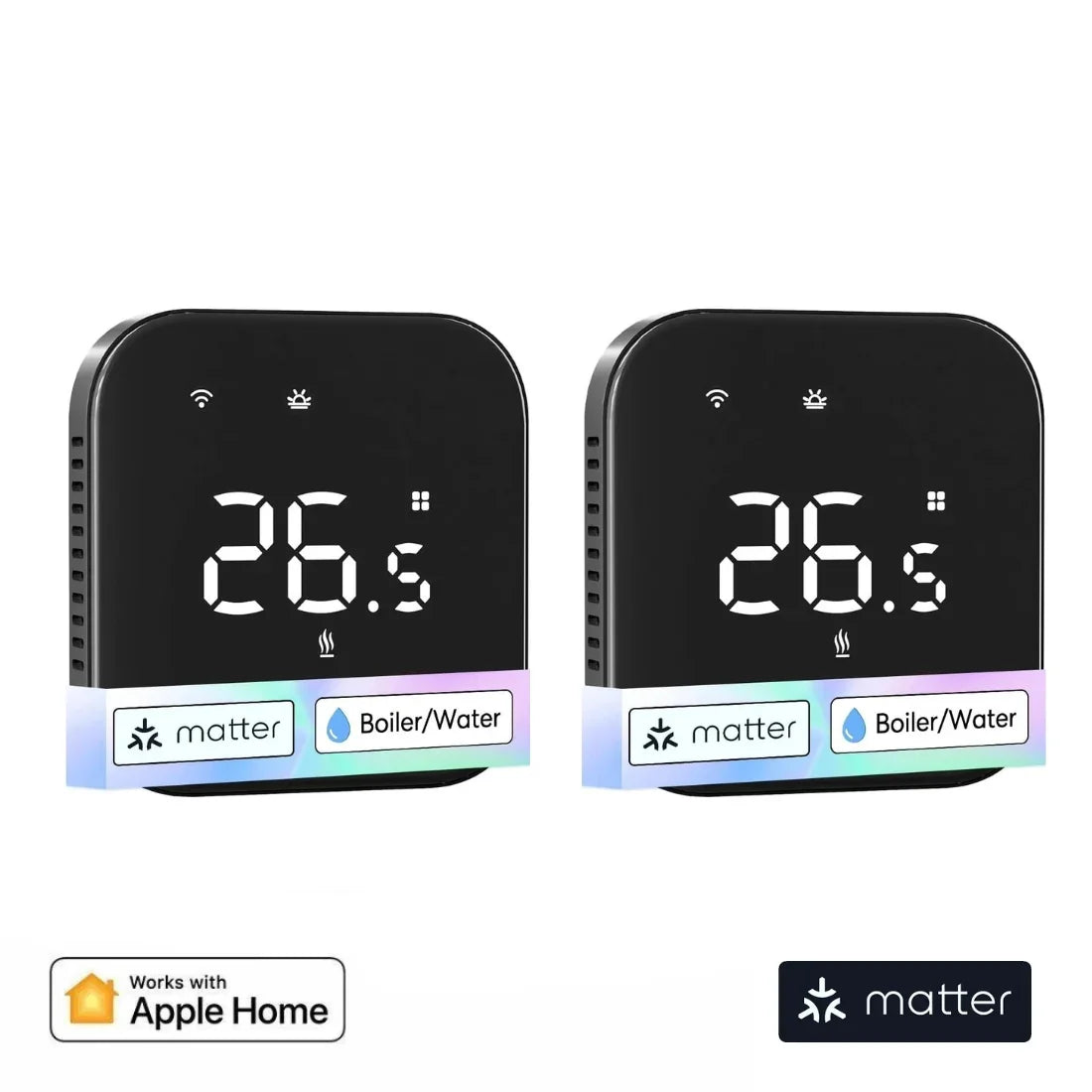

• Meross MTS215BMA-B (Black): A deep black finish that looks great in loft-style spaces and modern dark interiors.

Will This Thermostat Work With My Heating System? (A Quick Look at the Wiring)

Not sure if you can replace your old thermostat with a smart one? In most cases, you can. Here's a quick way to check:

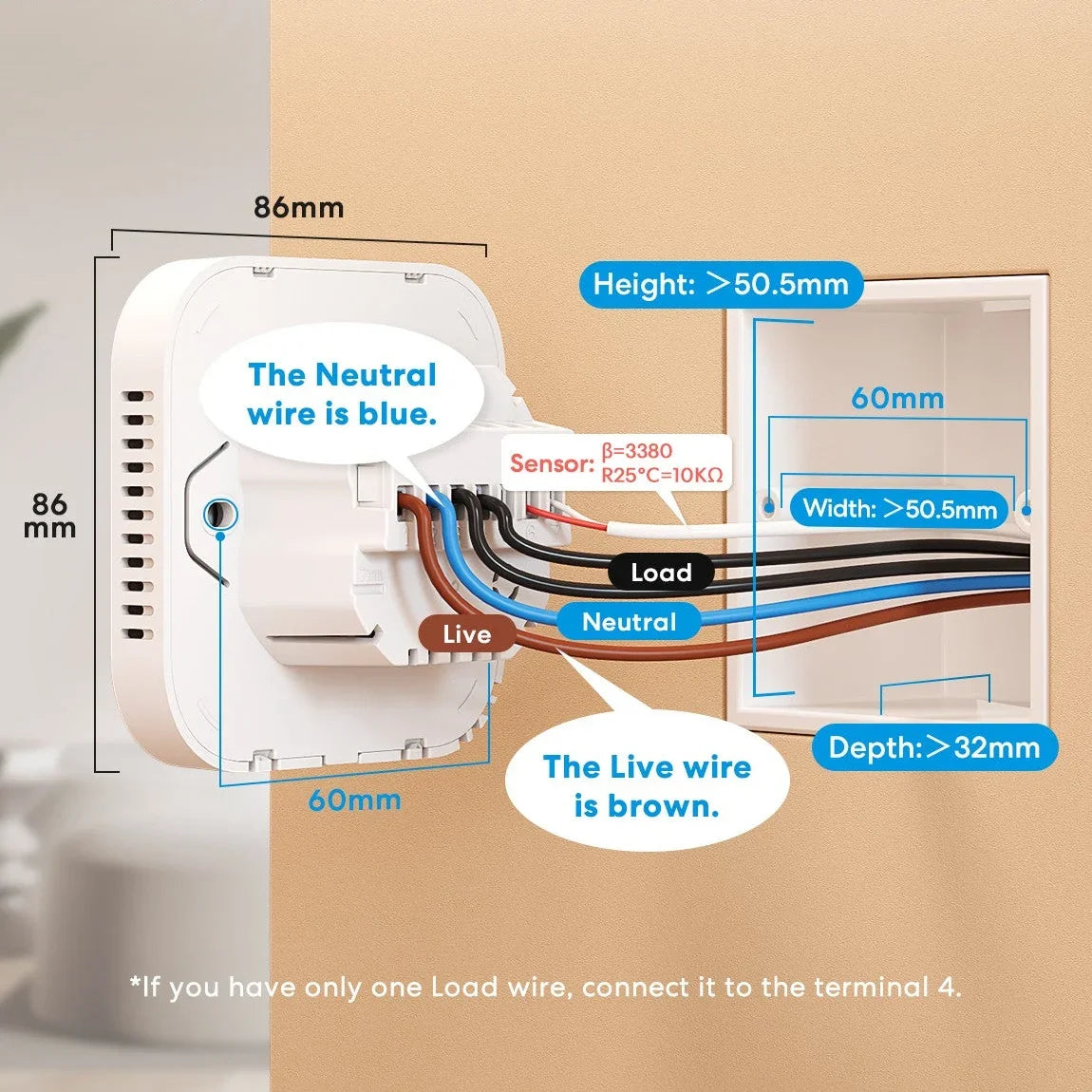

If you have electric underfloor heating (MTS215MA): Remove the front panel of your old thermostat. If you see 6 wires connected to it, the replacement should take around 10 minutes. You should have:

1. Power supply (2 wires): Live (L) and Neutral (N) from the electrical distribution board (220V).

2. Heating load (2 wires): These run to the heating element in the floor (L1, N1).

3. Sensor (2 thin wires): These run to the external temperature sensor installed in the floor. The Meross MTS215MA comes with its own sensor, but it also works with most standard built-in 10kΩ sensors.

If you have water underfloor heating or a boiler (MTS215BMA / BMA-B): The wiring is different. The load is much lower (up to 3A) because the thermostat only controls the valves and actuators.

1. For water underfloor heating: Connect the 220V power wires (L, N) and the wires running to the actuator on the manifold, which opens and closes the heating circuit.

2. For a boiler (Dry contact): The 220V power supply (L, N) powers the thermostat itself, while the boiler's control wires connect to the COM / NO terminals. The thermostat then works like a smart switch, telling the boiler to turn on when the room temperature drops.

How to Install and Connect It

Important: Installation should be carried out by a qualified professional in accordance with electrical safety regulations.

1. Switch off the power at the electrical panel.

2. Remove the old thermostat.

3. Connect the wires according to the wiring diagram on the back of the Meross thermostat (Live, Neutral, Load/Control, Sensor).

4. Secure the metal frame to a standard European-style 86x86 mm junction box.

5. Snap the glass panel into place and turn the power back on.

6. Open your smart home app (Apple Home, Google Home, etc.), scan the Matter setup code from the manual, and you're ready to go!

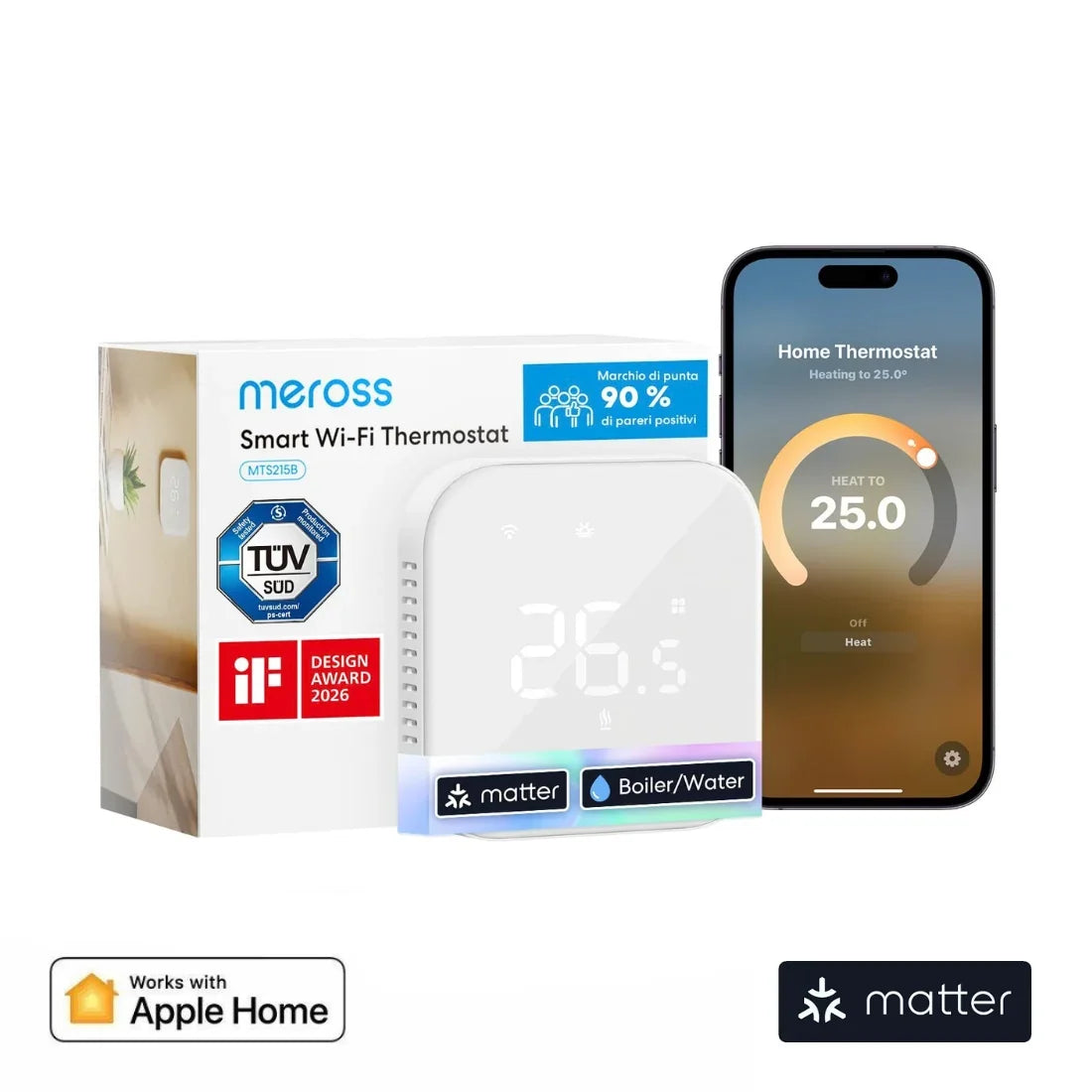

What's in the Box?

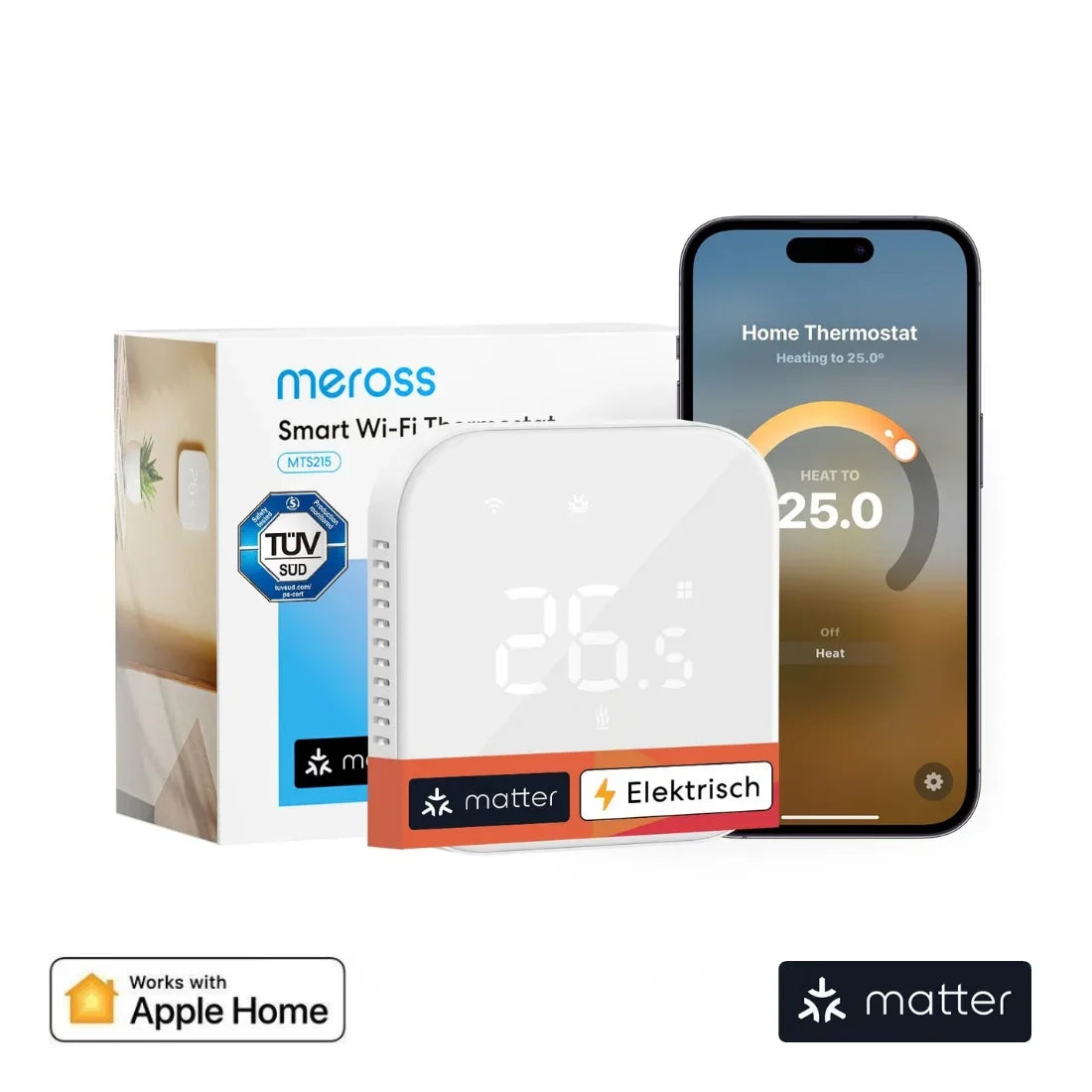

• Meross MTS215 Smart Thermostat with Matter support.

• External floor temperature sensor (3-meter cable) — Important: The sensor is included only with the electric heating version (MTS215MA), as the water-heating versions can work with the built-in air temperature sensor.

• Mounting screws (4 pcs.).

• User manual and a sticker with the Matter setup code.
